Custom Sheet Metal Fabrication Services
ZH Prototyping provides custom sheet metal fabrication services, including laser cutting, bending, welding, machining, and finishing. We manufacture and deliver sheet metal parts and assemblies with consistent quality and reliable production delivery.
- Factory-Direct Pricing
- Dedicated Engineering Support
- Reliable Lead Time
Quality Certifications
ISO 9001:2015 | IATF 16949:2016
STP I SLDPRT I IPT I PRT I SAT FLES
All uploaded content is secure and confidential.
Trusted by companies like
Custom Sheet Metal Fabrication Capabilities
ZH Prototyping operates a dedicated sheet metal fabrication facility equipped to handle custom metal part production from raw sheet materials to finished components. Our capabilities include precision cutting, forming, welding, machining, finishing, and assembly, supported by experienced technicians and controlled manufacturing processes.

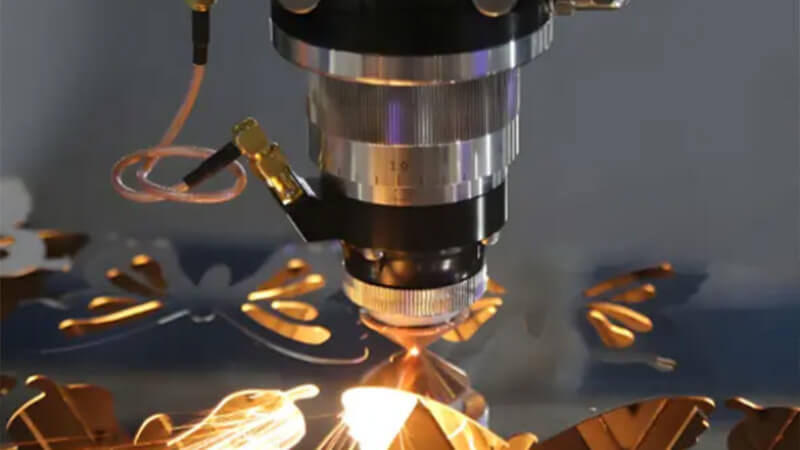

Laser Cutting
Precision laser cutting for sheet metal parts with complex profiles, clean edges, and consistent dimensional accuracy.

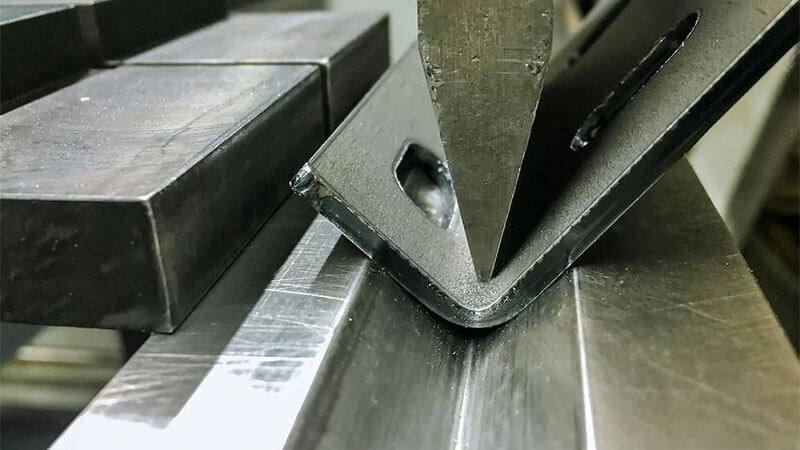

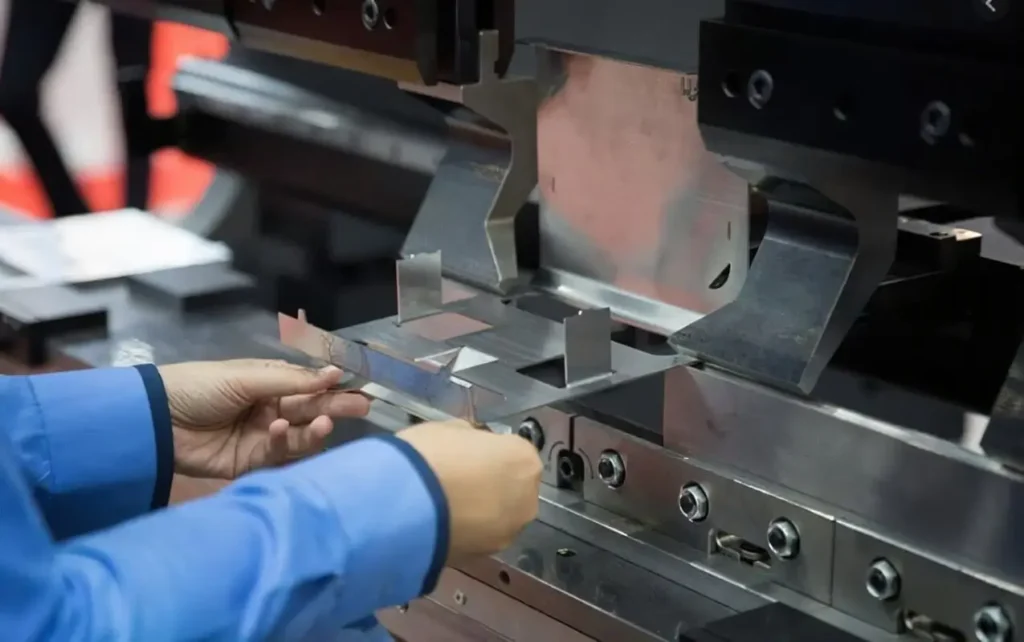

Bending
Accurate sheet metal bending to create custom shapes, angles, and formed components with reliable repeatability.

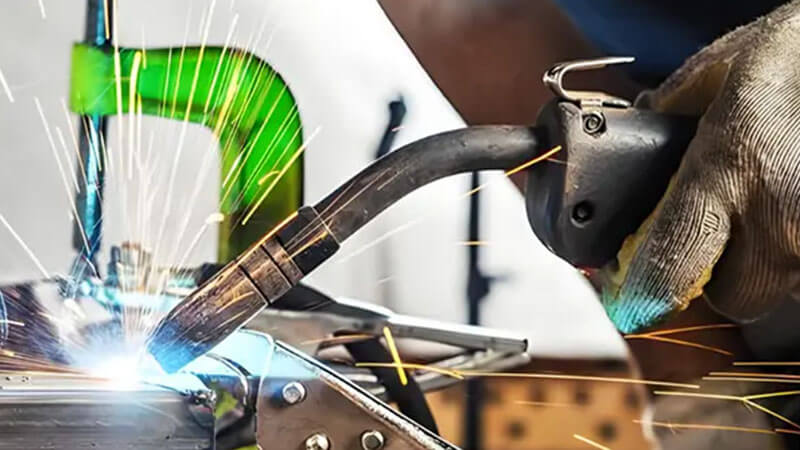

Welding
Professional welding processes to join sheet metal components into strong and durable assemblies.

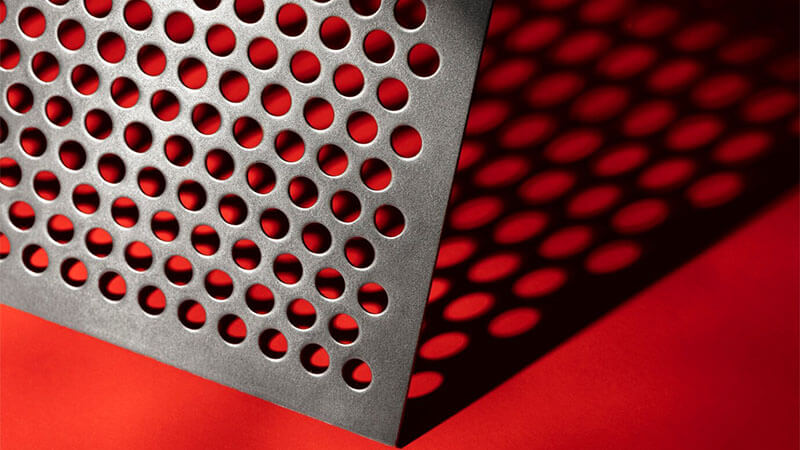

Punching
Efficient sheet metal punching for precise holes, slots, and custom features with consistent production quality.

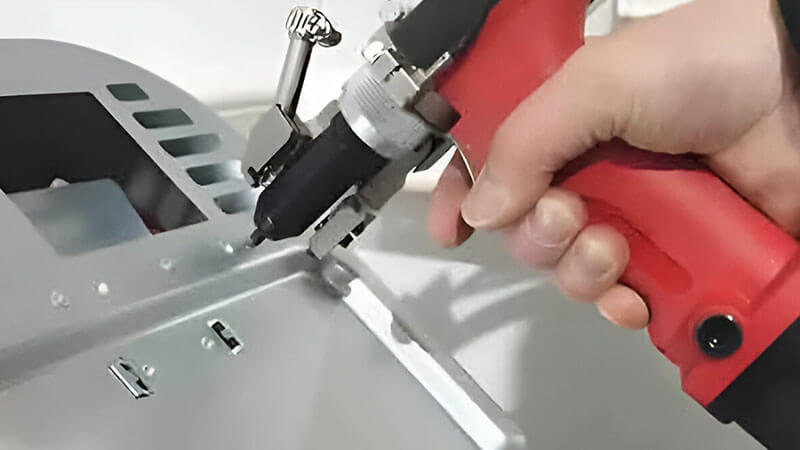

Riveting
Custom sheet metal enclosures manufactured with integrated cutting, bending, welding, and finishing capabilities.

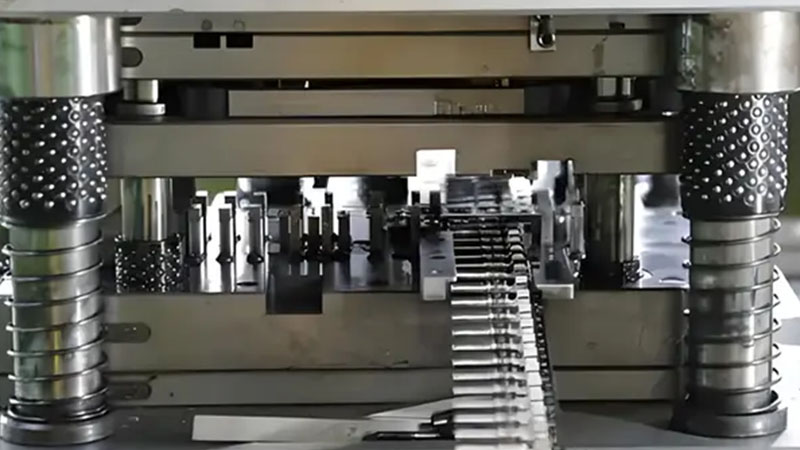

Stamping
Sheet metal stamping for repeatable forming of metal components with stable quality and production efficiency.
Sheet Metal Fabrication Tolerances
Dimensional tolerances in sheet metal fabrication are influenced by material type, sheet thickness, part geometry, and manufacturing process. ZH Prototyping applies controlled fabrication processes to maintain consistent accuracy across cutting, bending, welding, and secondary machining operations.
| Feature | Specification |
|---|---|
| General Tolerances | ISO 2768-m |
| Cutting Accuracy | ±0.2 mm |
| Bend Angle Accuracy | ±1.0° |
| Bend to Edge Tolerance | ±0.25 mm |
| Bend to Hole Tolerance | ±0.25 mm |
| Prototype Lead Time | 3–5 business days |

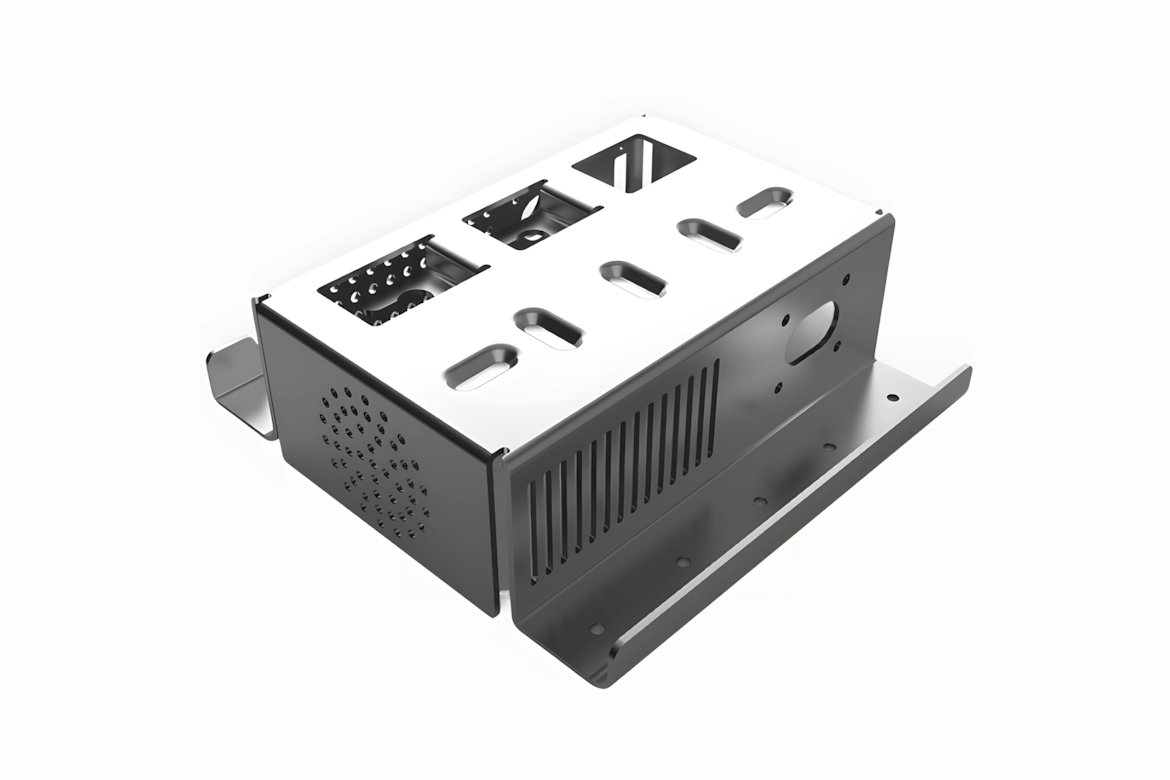

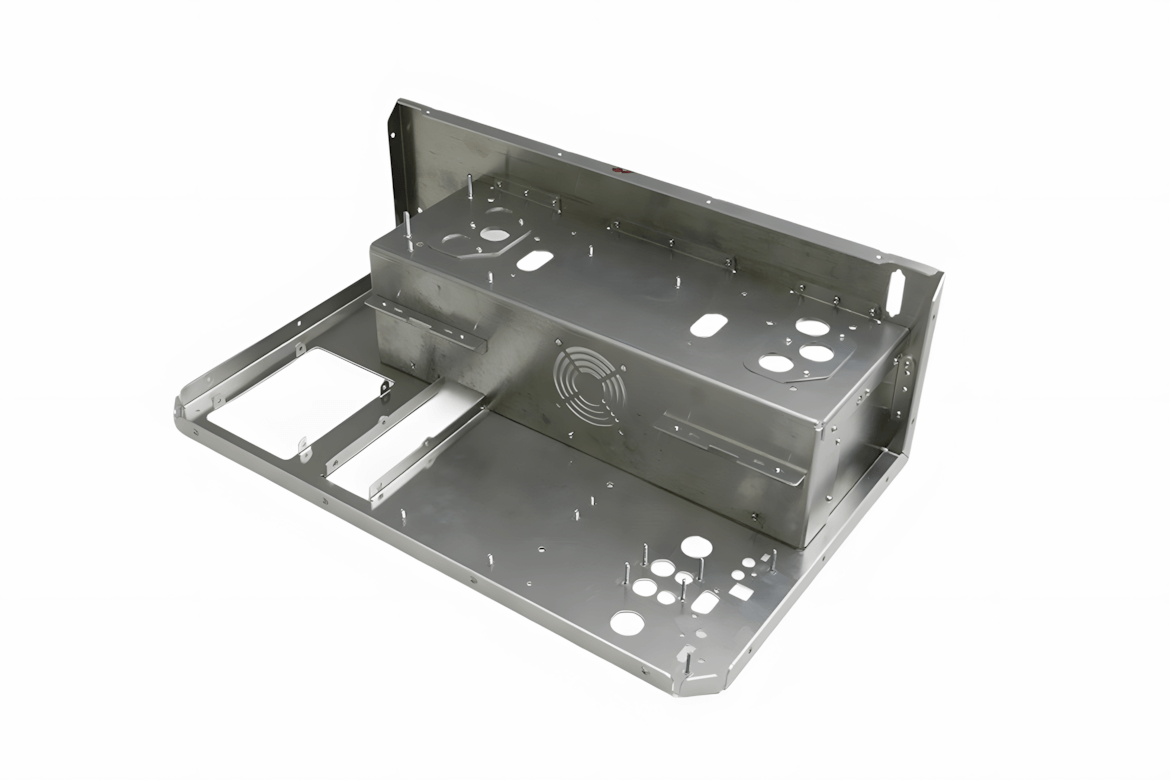

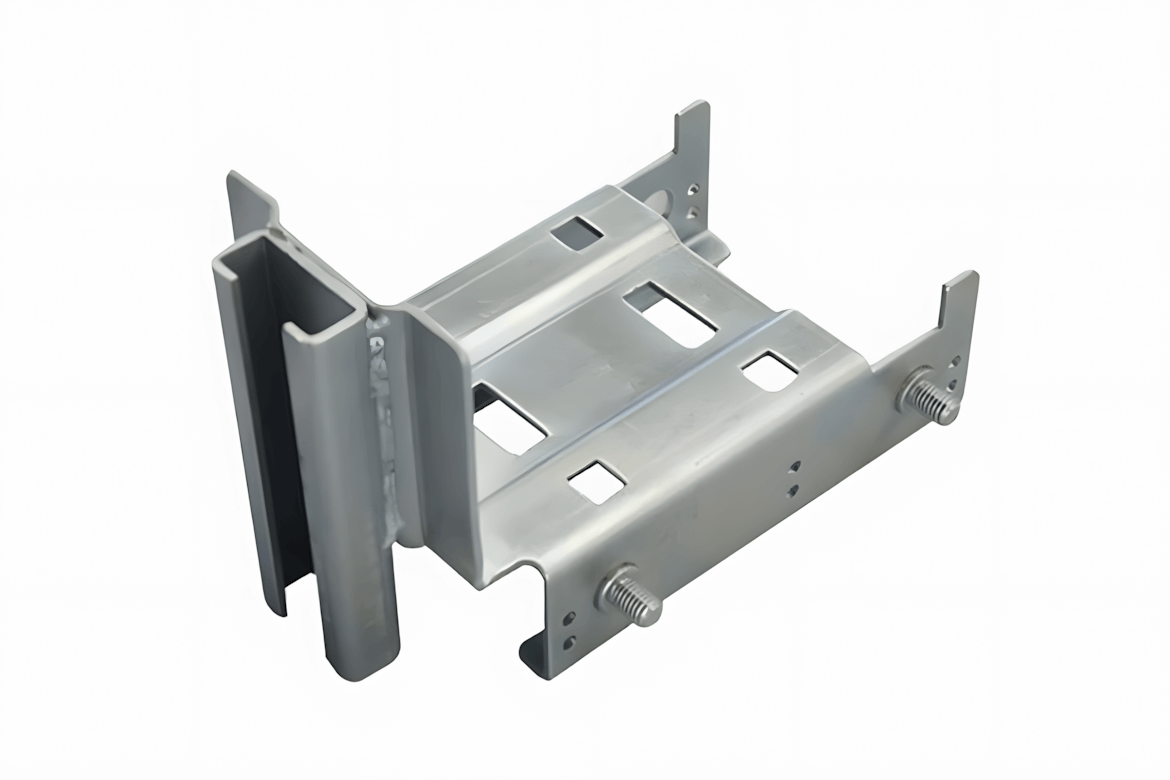

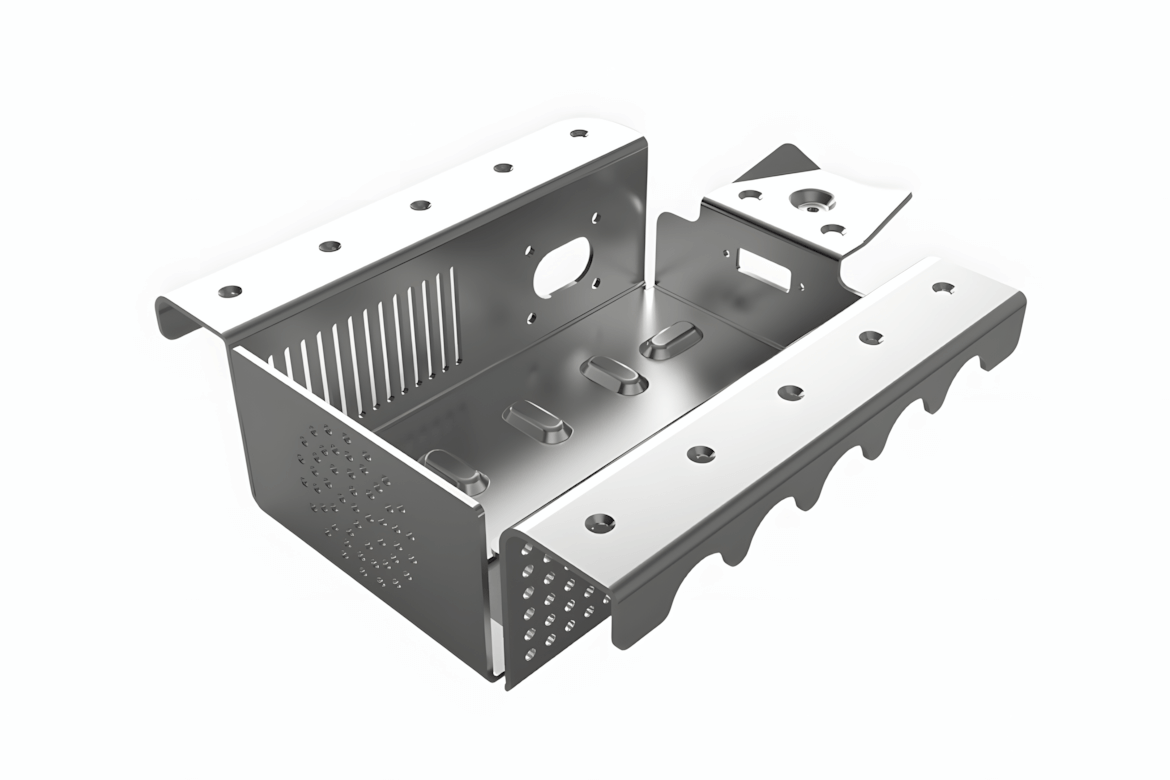

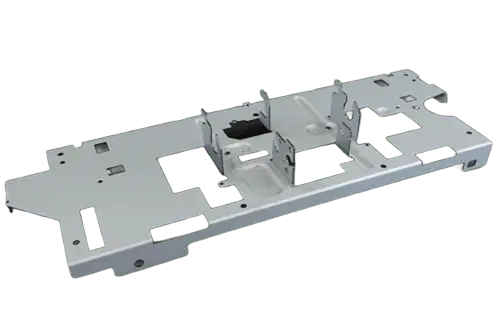

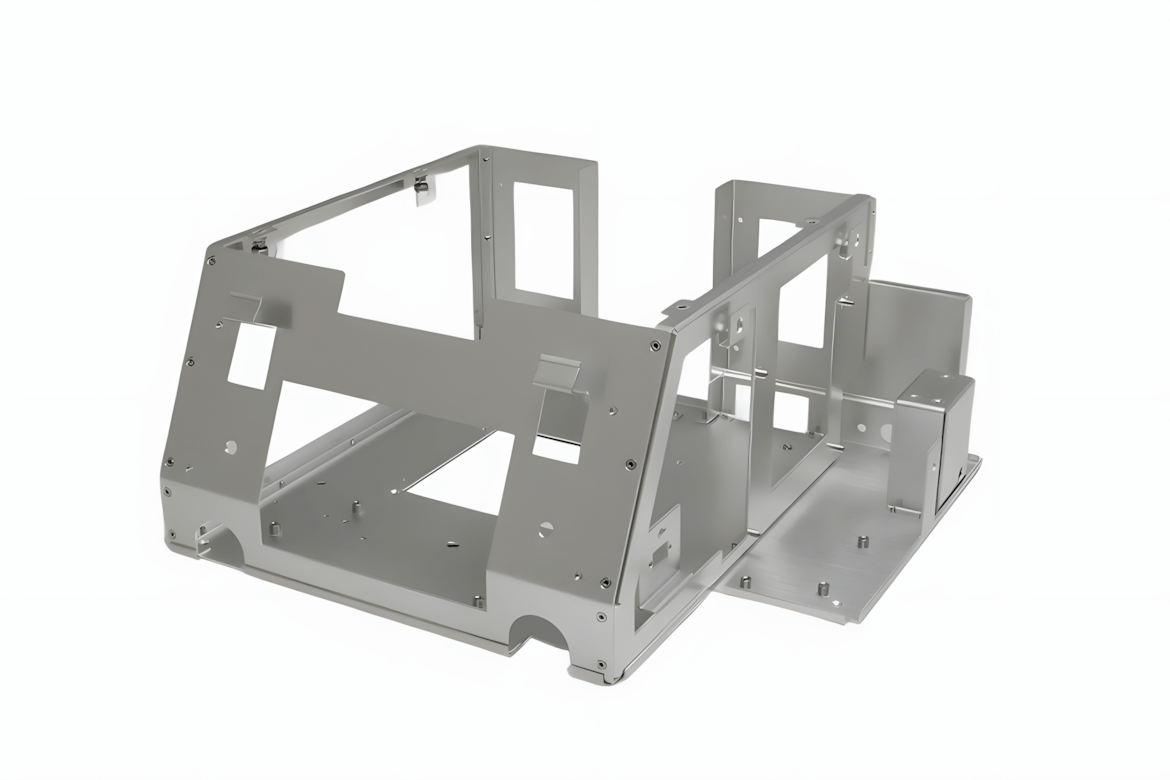

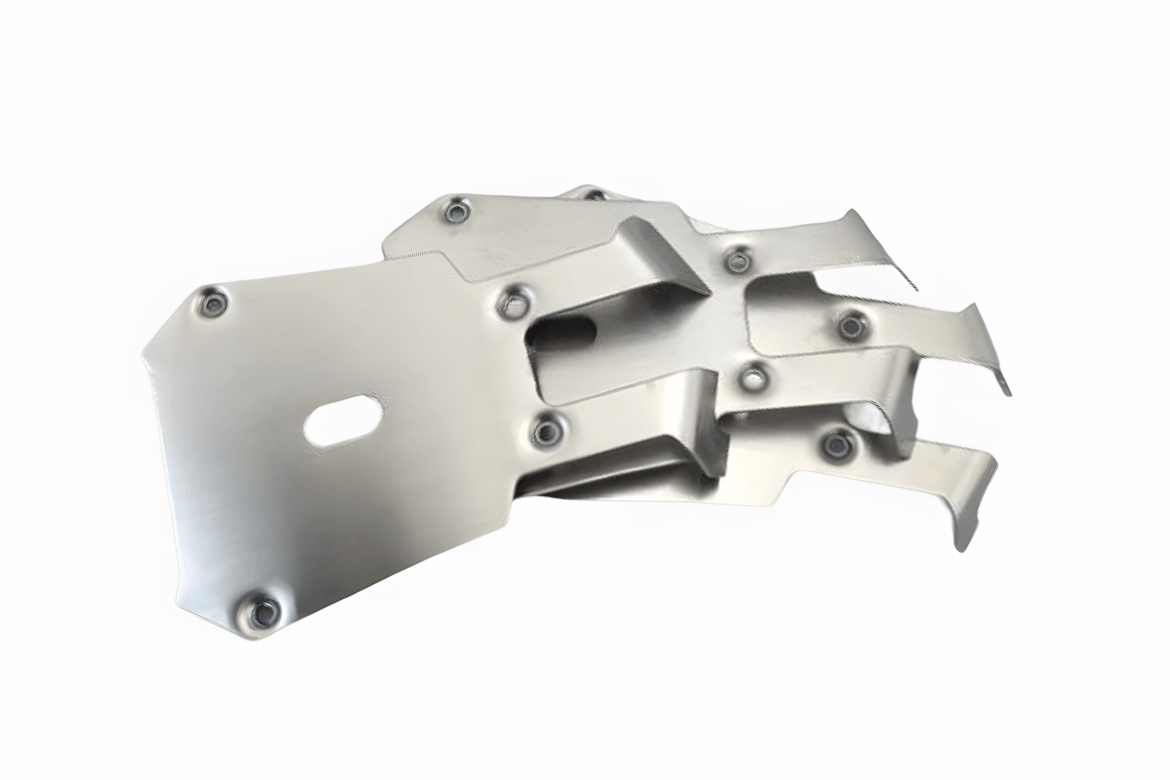

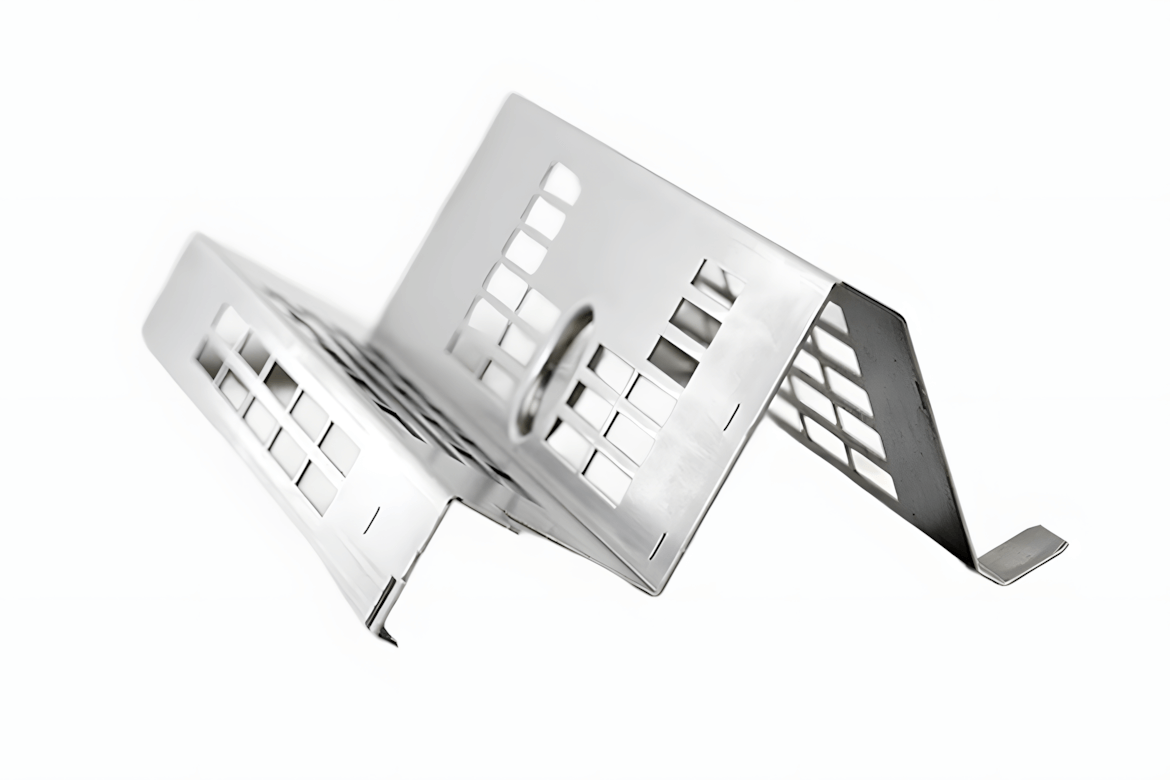

Custom Sheet Metal Parts We Manufacture
Custom sheet metal parts and assemblies are available in various designs, sizes, and configurations to support industrial equipment and OEM manufacturing requirements.
Request a Sheet Metal Fabrication Quote
Submit your drawings and project requirements to receive a customized quote for precision sheet metal parts and assemblies.
Sheet Metal Fabrication Solutions
From design review and DFM analysis to fabrication and production, sheet metal solutions are supported by engineering expertise and manufacturing capabilities. The process helps optimize part structure, material selection, and fabrication methods while supporting prototype, low-volume, and production requirements.

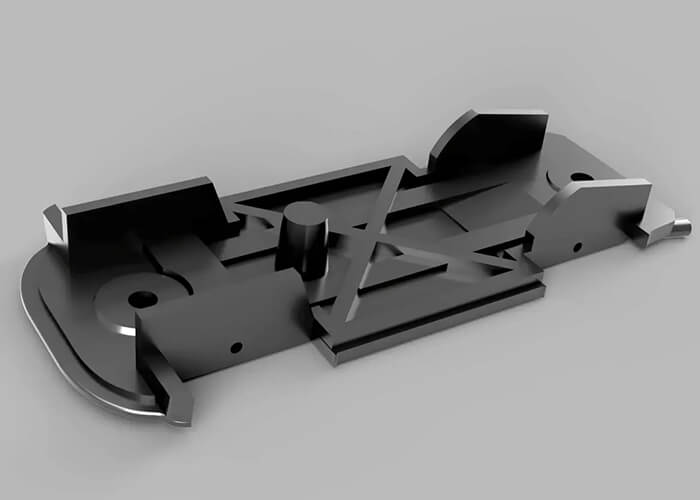

Sheet Metal Prototype Fabrication
Custom sheet metal prototype fabrication helps engineers verify designs, evaluate functionality, and refine products before production. We produce prototype parts with production-grade materials and manufacturing processes to support faster development.

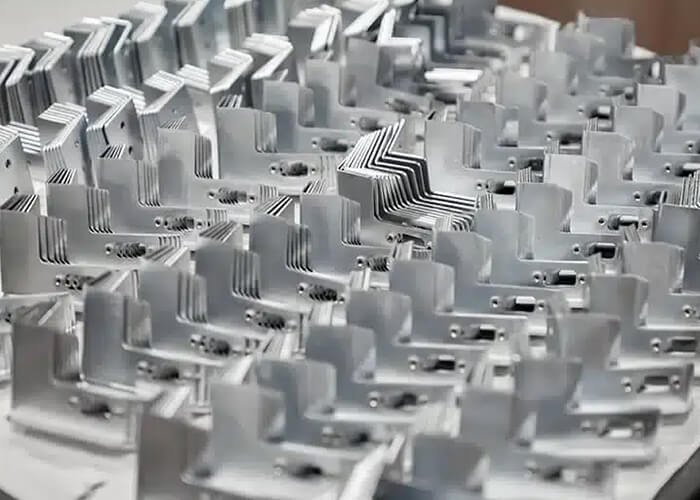

Low Volume Fabrication
Low-volume sheet metal fabrication provides a flexible solution for small batch requirements, pilot production, and specialized components. Our processes maintain consistent quality and dimensional accuracy throughout production.

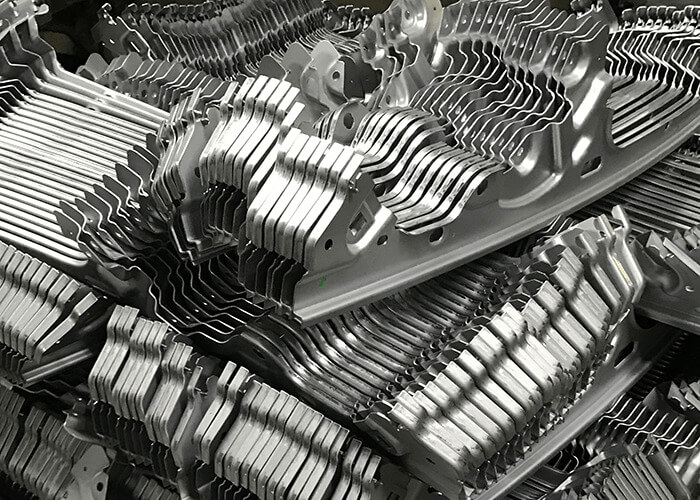

High-Volume Production
High-volume sheet metal production delivers repeatable manufacturing for larger quantity requirements. Controlled processes help maintain consistent part quality, stable output, and reliable performance during production runs.

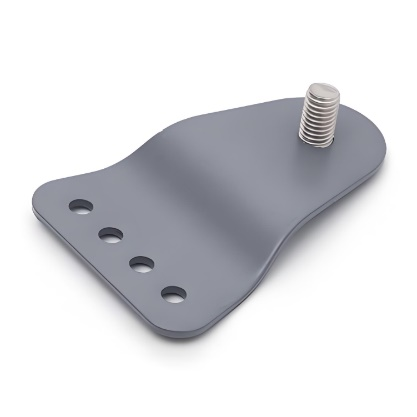

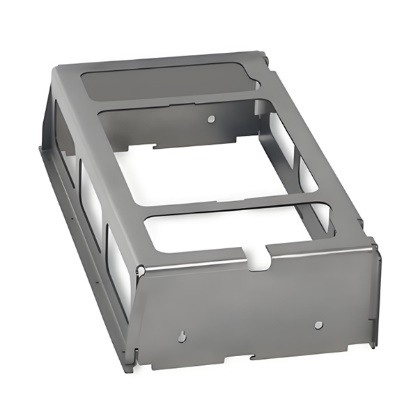

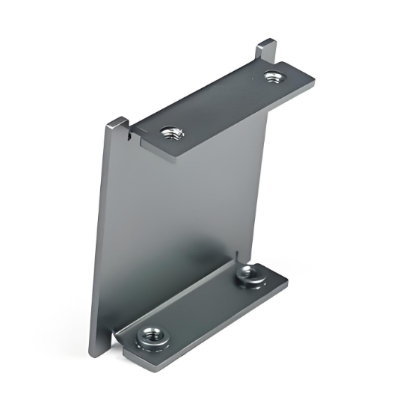

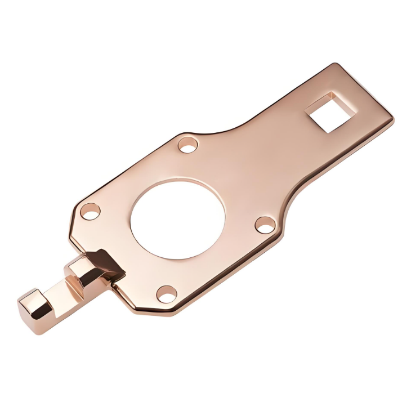

Sheet Metal Materials
Material quality and consistency are essential for reliable sheet metal parts. Materials are sourced from qualified suppliers and verified before production. Material certifications and traceability records are available upon request.
🔍 Need help selecting the right sheet metal material for your project? Our engineers can recommend suitable materials based on strength requirements, environmental conditions, fabrication processes, and application needs.
Sheet Metal Parts Surface Finishing
A wide range of surface finishing options is available for custom sheet metal parts, including protective, decorative, and functional treatments. Finishing requirements are controlled based on material specifications, part usage, and customer requirements.
Powder Coating
Provides a durable protective coating with excellent corrosion resistance, wear resistance, and flexible color options for sheet metal components.
Anodizing
Enhances surface hardness, corrosion resistance, and appearance for aluminum sheet metal parts while maintaining a uniform finish.
Sand Blasting
Creates a consistent matte texture while improving surface appearance and preparing parts for additional finishing processes.
Brushing
Produces a uniform directional texture on metal surfaces for improved appearance and a refined industrial finish.
Polishing
Creates a smooth and reflective surface finish for sheet metal parts requiring enhanced appearance and surface quality.
Alodine
Provides a protective chemical conversion coating for aluminum parts, improving corrosion resistance while maintaining electrical conductivity.
Electroplating
Improves corrosion resistance, surface durability, and functional properties through the application of metallic coatings.
Electropolishing
Enhances the surface smoothness, cleanliness, and corrosion resistance of stainless steel sheet metal components.

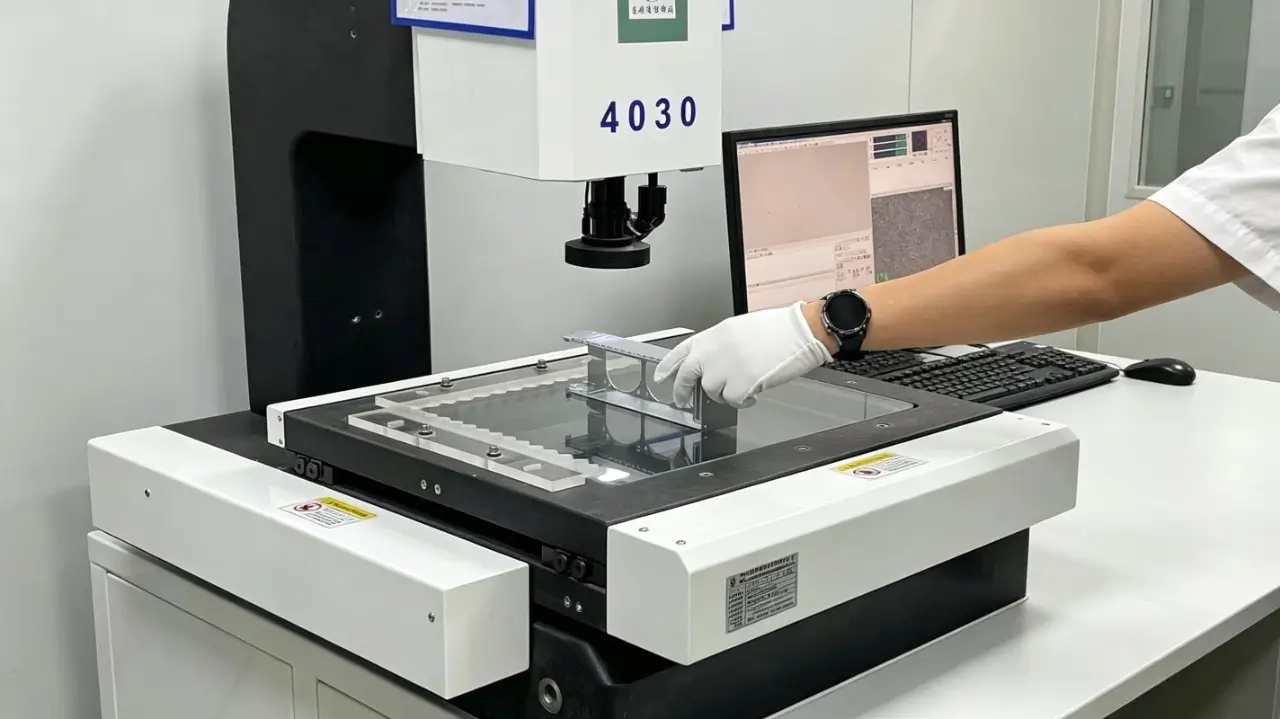

Quality Control for Sheet Metal Fabrication
ZH Prototyping applies structured quality control procedures throughout the sheet metal fabrication process to maintain dimensional accuracy, consistent workmanship, and reliable part performance. From material verification to final inspection, each stage is monitored to ensure fabricated components meet customer requirements.
- ISO 9001 certified quality management system for controlled fabrication processes
- Standard inspection reports provided with completed orders for verification
- Detailed dimensional inspection reports available for critical requirements
- Material certifications and test documentation available upon request
- Batch inspections ensure production consistency
- NDA agreements protect customer designs and information
Why Engineers Choose ZH Prototyping
A reliable sheet metal supplier should provide more than fabrication capacity. Engineering support, process optimization, manufacturing flexibility, and quality control help ensure sheet metal parts meet design requirements from initial development through production.
One-Stop Manufacturing
Our engineering team helps review designs, optimize fabrication processes, and identify potential manufacturing issues before production.
Engineering Support
Our engineering team helps review designs, optimize fabrication processes, and identify potential manufacturing issues before production.
Consistent Quality
Controlled processes and inspection procedures help maintain consistent quality, accurate dimensions, and reliable production results.
What Is Sheet Metal Fabrication?
Sheet metal fabrication is a manufacturing process that transforms flat metal sheets into custom components and assemblies through cutting, forming, joining, and finishing operations. The process uses materials such as aluminum, stainless steel, steel, copper, and brass to produce parts with specific shapes, dimensions, and functional requirements.
Sheet metal fabrication typically includes processes such as laser cutting, bending, welding, stamping, machining, and surface finishing. These methods allow manufacturers to create precision metal parts ranging from simple brackets and panels to complex enclosures and structural assemblies.
Advantages of Sheet Metal Fabrication
1.High Production Efficiency: Enables fast, repeatable manufacturing for prototypes, low-volume orders, and scalable production runs.
2.Design Flexibility: Supports complex shapes, custom geometries, and various part designs through cutting, bending, welding, and forming processes.
3.Design Flexibility: Supports complex shapes, custom geometries, and various part designs through cutting, bending, welding, and forming processes.
4.Strong and Durable Parts: Produces rigid metal components with excellent strength, durability, and long-term performance for demanding applications.

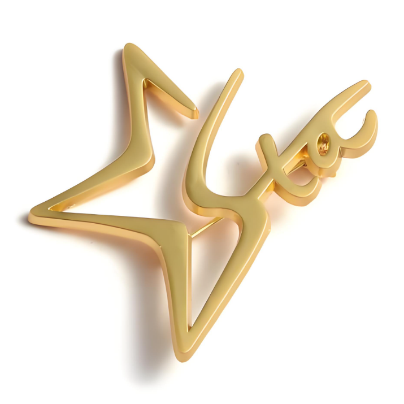

5.Wide Material Options: Supports aluminum, stainless steel, steel, copper, and brass materials to meet different mechanical and functional requirements.
6.Fast Production Turnaround: Streamlines fabrication workflows to support efficient production schedules and shorter manufacturing lead times.
Sheet Metal Fabrication Applications
1.Industrial Equipment: Custom enclosures, machine covers, brackets, frames, and structural components for industrial machinery.
2.Electrical Equipment: Electrical cabinets, control boxes, housings, panels, and mounting components for electrical systems.
3.Automotive Components: Brackets, covers, chassis components, shields, and structural sheet metal parts for automotive applications.
4.Medical Equipment: Precision enclosures, equipment panels, brackets, and fabricated components for medical devices.
5.Commercial Equipment: Cabinets, housings, panels, covers, and custom sheet metal components for commercial products.
6.Telecommunications Equipment: Server racks, equipment enclosures, chassis, brackets, and mounting panels for communication systems.
Frequently Asked Questions
Yes. ZH Prototyping manufactures custom sheet metal parts based on 2D drawings, 3D CAD files, and specific project requirements. Our engineering team reviews designs to ensure manufacturability before production.
Yes. Inspection reports, dimensional measurement records, and material certifications can be provided based on project requirements.
Lead times depend on part complexity, material availability, finishing requirements, and order quantity. After reviewing your drawings and requirements, our team provides a production timeline with the quotation.
Customer designs and project information are protected through strict confidentiality procedures and NDA agreements when required.
To prepare an accurate quote, customers typically provide CAD files or drawings, material requirements, surface finish, tolerances, quantity, and delivery requirements.
